Draws the records as they stand at whatever stage they have reached, so a segmentation can be checked before it is trusted. plot() on a distsamp_segments object shows the finished result; this shows the steps that produced it, where a mistake is still legible.

Usage

plot_survey(
  dat,
  what = c("effort", "occupations", "tracks", "platform", "legstage", "raw", "positions"),
  coastline = TRUE,
  max_points = 50000,
  max_legend = 12,
  facet_by = NULL,
  dates = NULL,
  years = NULL,
  months = NULL,
  sightings = FALSE
)

Arguments

dat

A survey data frame at any stage: LATITUDE and LONGITUDE are required, and each view needs the column it colours by.

what

Which view: "effort" (default), "occupations", "tracks", "platform", "legstage", "raw", or "positions".

coastline

Land to draw underneath. TRUE (default) fetches Natural Earth through rnaturalearth; FALSE draws none; a scale name ("small", "medium", "large") picks the resolution; an sf object is drawn as given, and is the better option at bay scale. Unlike plot.distsamp_segments(), a coastline that cannot be fetched here gives a warning and no land, rather than an error.

max_points

Thin to at most this many records. Default 50000.

max_legend

Most groups to name in the legend. Default 12. Beyond this, occupations and tracks take a recycled palette and the legend is dropped, since a hundred colours cannot be told apart.

facet_by

Column to facet on, or NULL for none. Defaults to DATE when the data covers 2 to 12 days. Beyond that the panels are too small to read, and one map is drawn.

dates, years, months

Which survey days to draw, passed to filter_days(). NULL (default) draws all of them. A decade of survey on one map is unreadable; years = 2019, months = 8 is not.

sightings

Draw the sightings over the effort? FALSE (default) draws none, TRUE draws every species, and a character vector of SPECCODE values draws only those (sightings = "RIWH"). They are taken from the data before thinning, since a few thousand sighting rows in three million would not survive it, and are drawn as outlined markers on top of the track.

Value

A ggplot object.

What each view is for

"effort"

Positions coloured by OnOff.Effort. Look here first: a survey that is almost entirely off effort has a criterion failing, and the map shows whether that is everywhere or on particular days.

"occupations"

Positions coloured by LEGNO3, the line-occupation identifier. Adjacent occupations take different colours, so one line split into three occupations, or three merged into one, is visible immediately. This view catches a bad make_leg_id(). A bad LEGNO3 is the most consequential error possible: effort is grouped by it and segments are cut within it.

"tracks"

Positions coloured by new_trackno, the stretches of continuous effort that are actually chopped into segments. Differs from "occupations" wherever effort broke mid-line.

"platform"

Positions coloured by PLATFORM_KIND from narwcr::classify_platform(). For an archive holding more than one kind of survey.

"legstage"

Positions coloured by LEGSTAGE. Shows where a line begins, breaks off, resumes and ends, and, on a file that records the code only at change points, how little of it is written down.

"raw"

Every position, coloured by LEGTYPE, needing nothing but the file as read. Shows the survey before this package has changed it; compare the other views against it when a later stage seems to have lost something.

"positions"

Every position, uncoloured. It needs only LATITUDE and LONGITUDE, so it works on a file that has not been through prepare_survey(), or one with unexpected columns. With sightings = TRUE it shows the whole survey, effort and sightings, in one map.

Thinning

A survey archive can hold millions of positions, and a scatter plot of five million points is neither drawable nor readable. The plotted points are thinned to max_points by taking every nth. The subtitle says when it happened. Set max_points = Inf to draw every point.

Thinning never applies to the path. Every nth record preserves the shape of a straight line and loses it at every turn, so a path drawn through the survivors cuts the corners. At three million records that is a chord between fixes some 18 km apart, which can draw a trackline over land. The lines in the "occupations" and "tracks" views are therefore built from every fix, whatever max_points says. On a whole archive this costs a few seconds of drawing.

See also

plot.distsamp_segments() for the finished segmentation, diagnose_pipeline() for the same checks as numbers.

Examples

path <- system.file("extdata", "narwc-example.csv", package = "distsamp")
dat <- narwcr::flag_effort(narwcr::make_leg_id(narwcr::read_narwc(path, quiet = TRUE)))

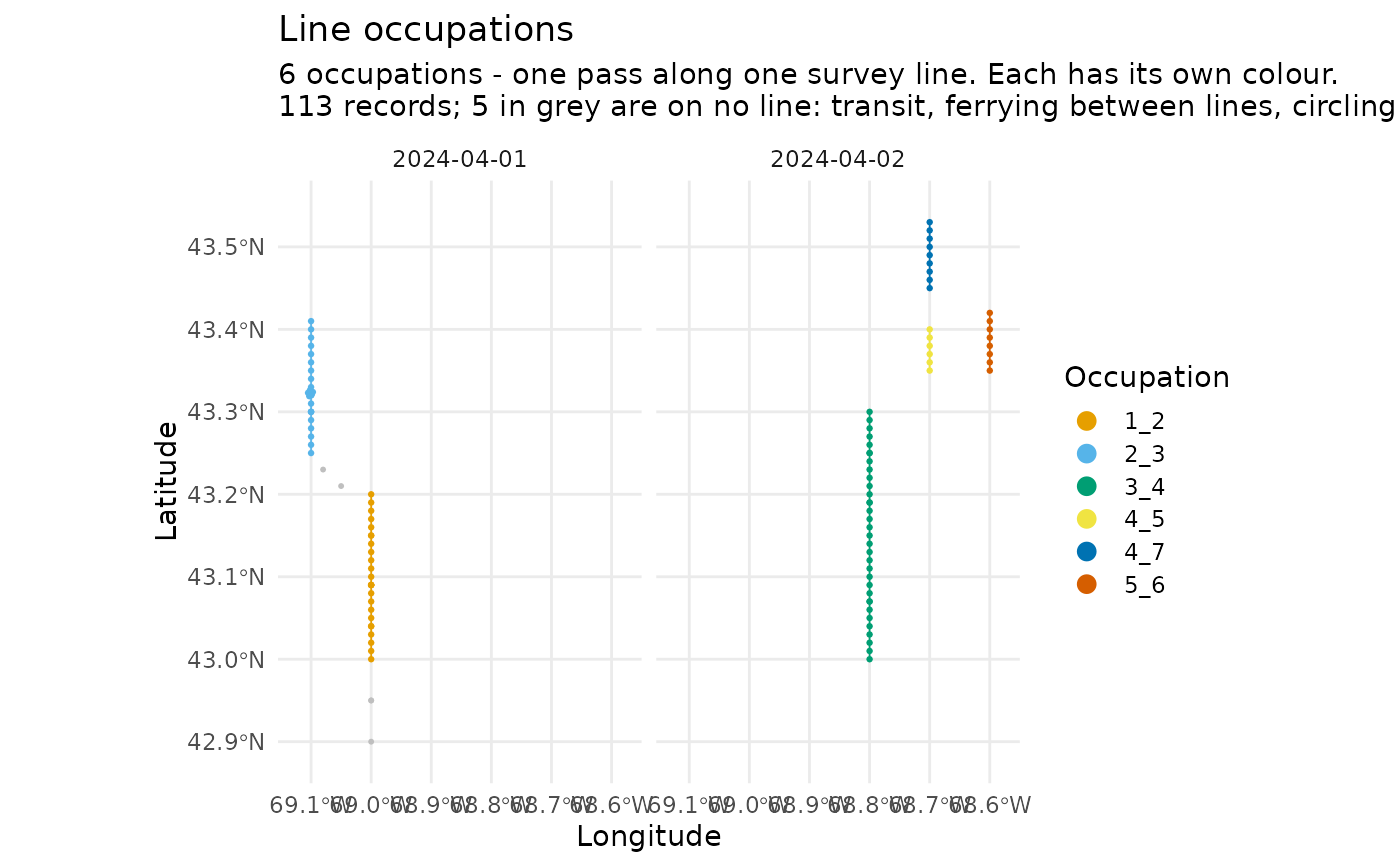

plot_survey(dat, "occupations")


# One day, or one month of one year

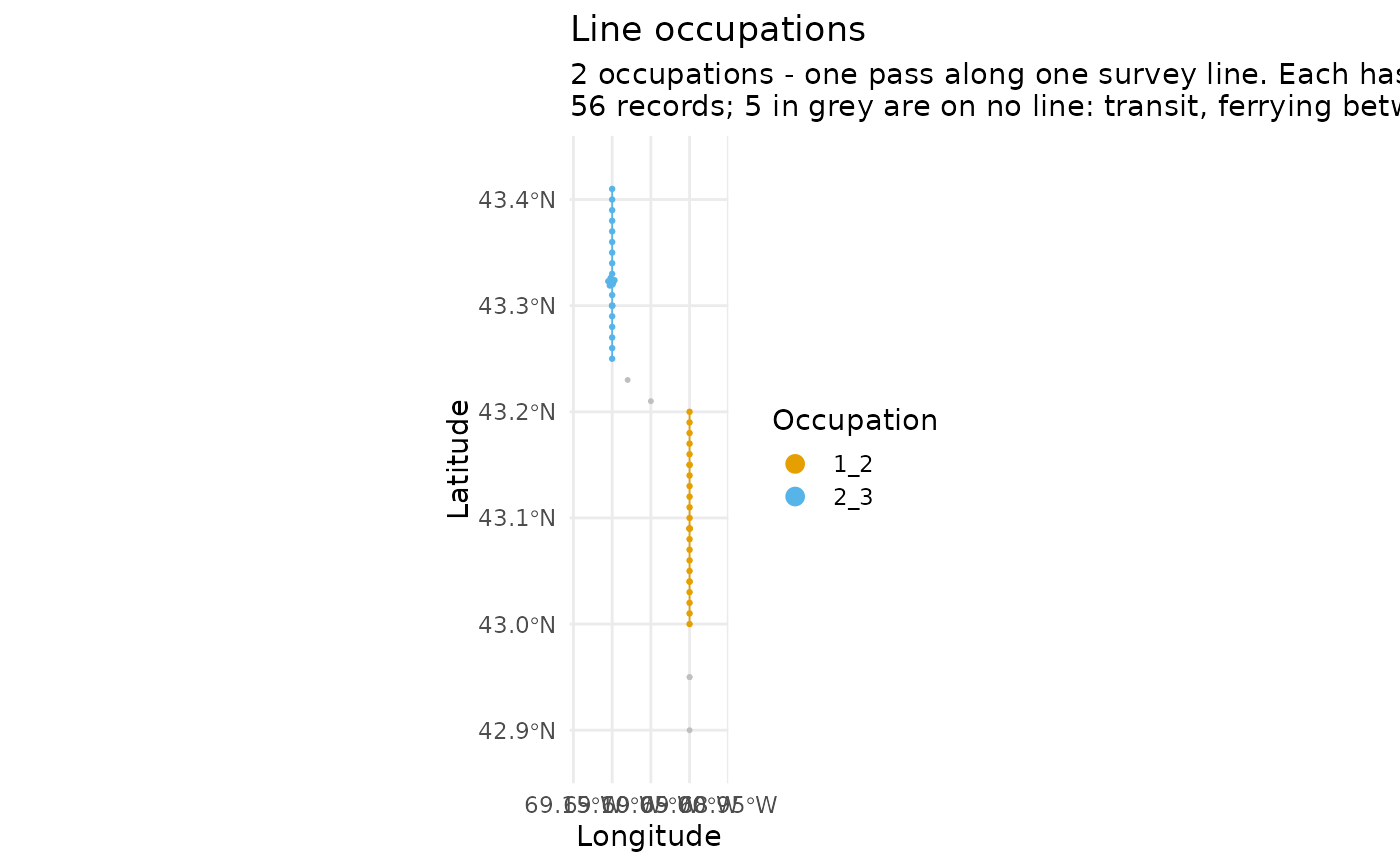

plot_survey(dat, "occupations", dates = "2024-04-01")
