Map a quantity with a meaningful centre

Source: R/map-surface.R
map_diverging.Rd

For anything that diverges: an extrapolation score around zero, model residuals around their own mean, a difference between two periods around no change.

Usage

map_diverging(
  x,
  value = NULL,
  midpoint,
  by = NULL,
  coords = NULL,
  crs = NULL,
  label = NULL,
  coastline = TRUE,
  region = NULL,
  limits = NULL,
  probs = c(0.01, 0.99),
  direction = 1,
  title = NULL,
  subtitle = NULL,
  caption = NULL,
  scalebar = TRUE,
  north = TRUE,
  scalebar_position = "bl",
  north_position = "tr",
  inset = FALSE,
  inset_position = "br",
  inset_size = 0.3,
  inset_zoom = 8,
  graticule = FALSE,
  base_size = 12,
  theme = NULL,
  expand = 0.02
)

Arguments

x

The geometry. An sf object of polygons, points or lines, a terra SpatRaster, or a data frame with coordinate columns. See as_map_data().

value

What to colour by: a column name, a vector in feature order, or a named vector joined by by. See as_map_data().

midpoint

The value the neutral colour sits at. Required.

by, coords, crs

Passed to as_map_data(). crs is also the CRS the map is drawn in – see display_crs() for what happens when it is not given.

label

What to call the value in the legend. Defaults to the column name.

coastline

Where land comes from. TRUE chooses a source for the extent, FALSE draws none, a path or an sf object supplies one. See coastline().

region

An sf polygon to outline over the map – the study area, or whatever the grid was cropped to.

limits, probs

Passed to diverging_scale(). Limits are made symmetric about midpoint.

direction

Which way round the ramp runs. 1 puts the warm arm at the high end; -1 reverses it, which is what an extrapolation surface wants – its alarming values are the negative ones.

title, subtitle, caption

Figure text. The caption is where provenance belongs: which period, which product, which correction was not applied. Anything this function had to decide – a capped scale, a missing coastline – is appended to it.

scalebar, north

Whether to draw the furniture. See scale_bar() and north_arrow().

scalebar_position, north_position

Which corner each sits in: "bl", "br", "tl" or "tr". Two pieces of furniture asked into the same corner are warned about rather than moved – which corner is free depends on where the data sits, and only the caller can see that.

inset

Whether to draw a locator inset – a small wider map with this figure's extent marked on it. FALSE by default, unlike the scale bar and north arrow, because an inset sits over a corner of the data rather than in a margin. TRUE uses the same coastline source as the map; a path or an sf object gives the inset its own.

inset_position, inset_size, inset_zoom

Which corner the inset sits in, how much of the panel width it takes, and how many times wider than the map it starts. See locator_inset() – inset_zoom is a starting point, not a setting, because an inset showing nothing but water orients nobody.

graticule

Whether to label coordinates. Off by default; see theme_fancymap().

base_size

Base font size in points.

theme

A theme to use instead of theme_fancymap().

expand

How much margin to leave around the data, as a fraction of its own extent. The default is a thin margin. Widen it when the data does not reach anything a reader can orient by – a small grid in open water shows no coastline at all until the panel is wide enough to include one.

Value

A ggplot2 object.

Details

midpoint has no default on purpose. ggplot2::scale_fill_gradient2() falls back to the middle of the range, which is almost never the meaning:

  • an extrapolation score diverges around zero, because zero is where inside the training range becomes outside it;

  • deviance residuals diverge around their own mean, because they do not average zero, and centring them on zero paints every bin the same colour – a bug the first customer of this package hit in exactly that form.

See also

diverging_scale() for the limits, map_pair() to draw this beside the surface it qualifies.

Examples

grid <- example_grid()

# zero is the meaning, and the alarming side is the negative one

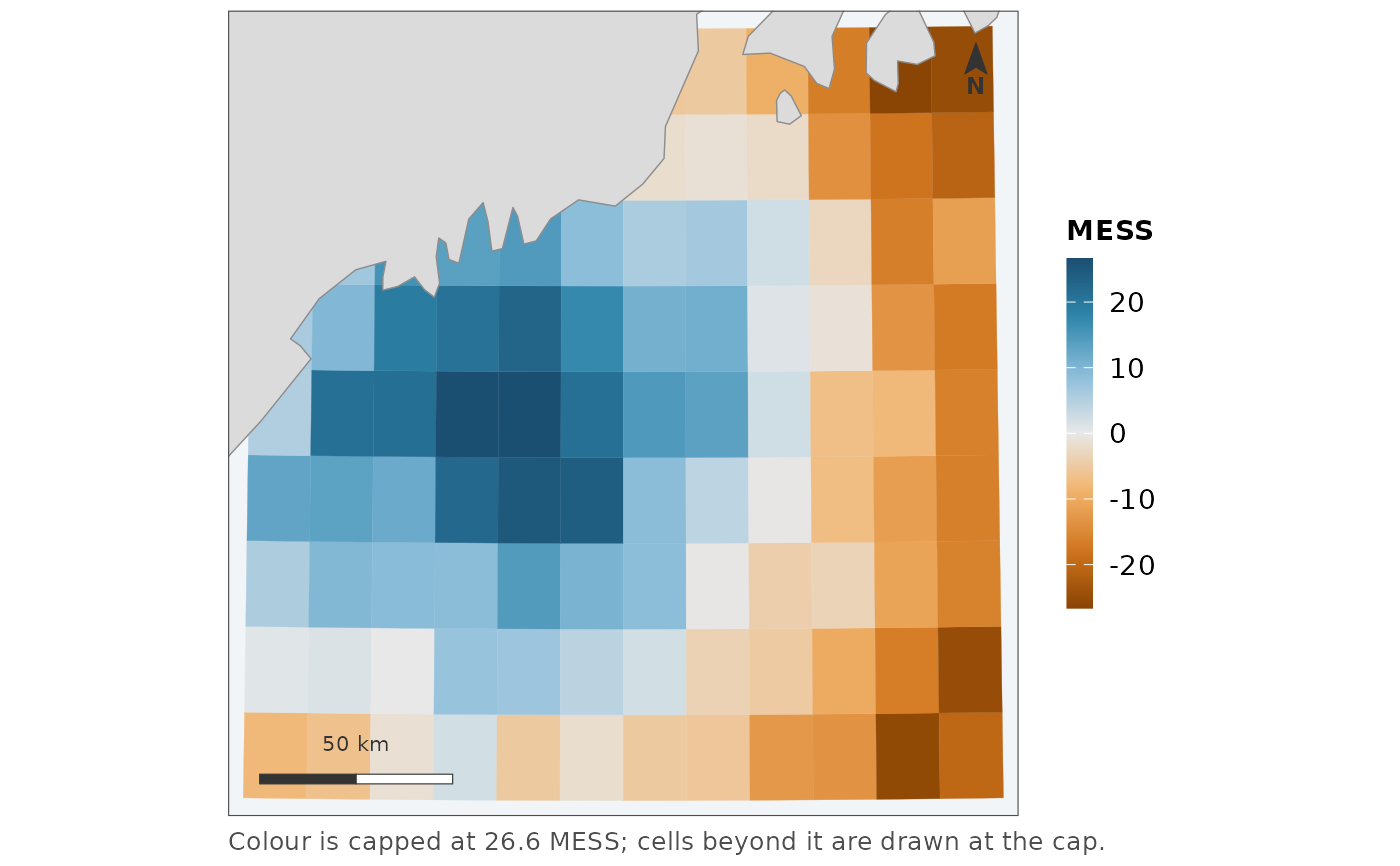

map_diverging(grid, "mess", midpoint = 0, direction = -1, label = "MESS")


# residuals diverge around their own mean

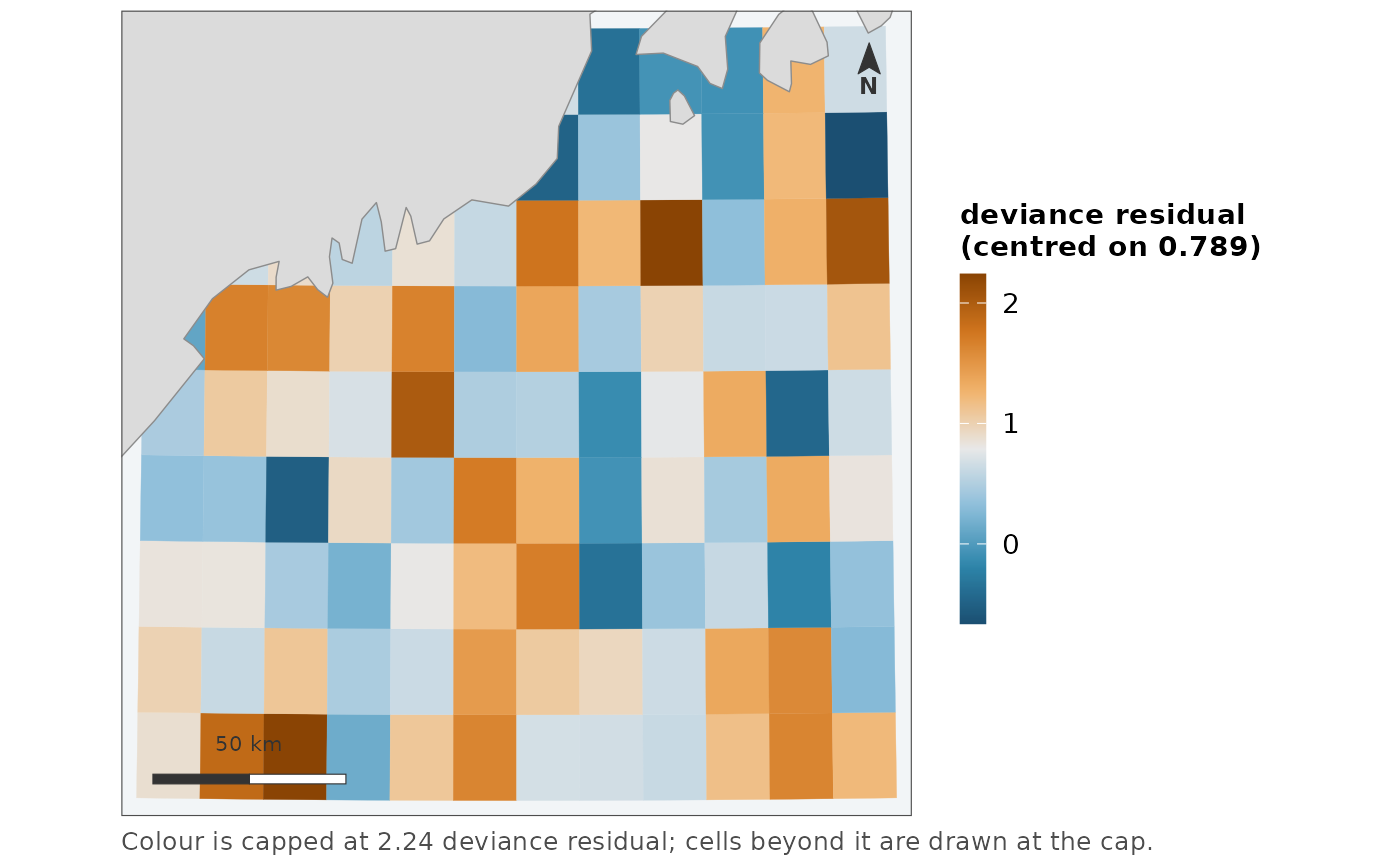

map_diverging(grid, "residual", midpoint = mean(grid$residual),
              label = "deviance residual")
